Dashboard PCB

The dashboard is a electronic display to inform the driver on the status of the vehicle.

The required items to be displayed are fault and safety related. On MD25, the dashboard was composed of multiple LEDs wired separately. This caused issues with wiring and integration with just a mess of wires hidden in the dashboard. A integrated dashboard will make it way easier to wire everything and allow more features to be implemented in a single system. By modularising this, it makes it significantly easier to maintain and debug the system.

The dashboard will be a box that will be mounted on the front. Inside the box, the PCB that will be designed will sit. This PCB will be designed working with the mechs to have a specific shape for mounting.

The Dashboard will compose of a...

The main component of the dashboard will be a series of LEDs.

These include:

• IMD
• AMS
• PDOC
• TSA
• Ready to Drive

Examples

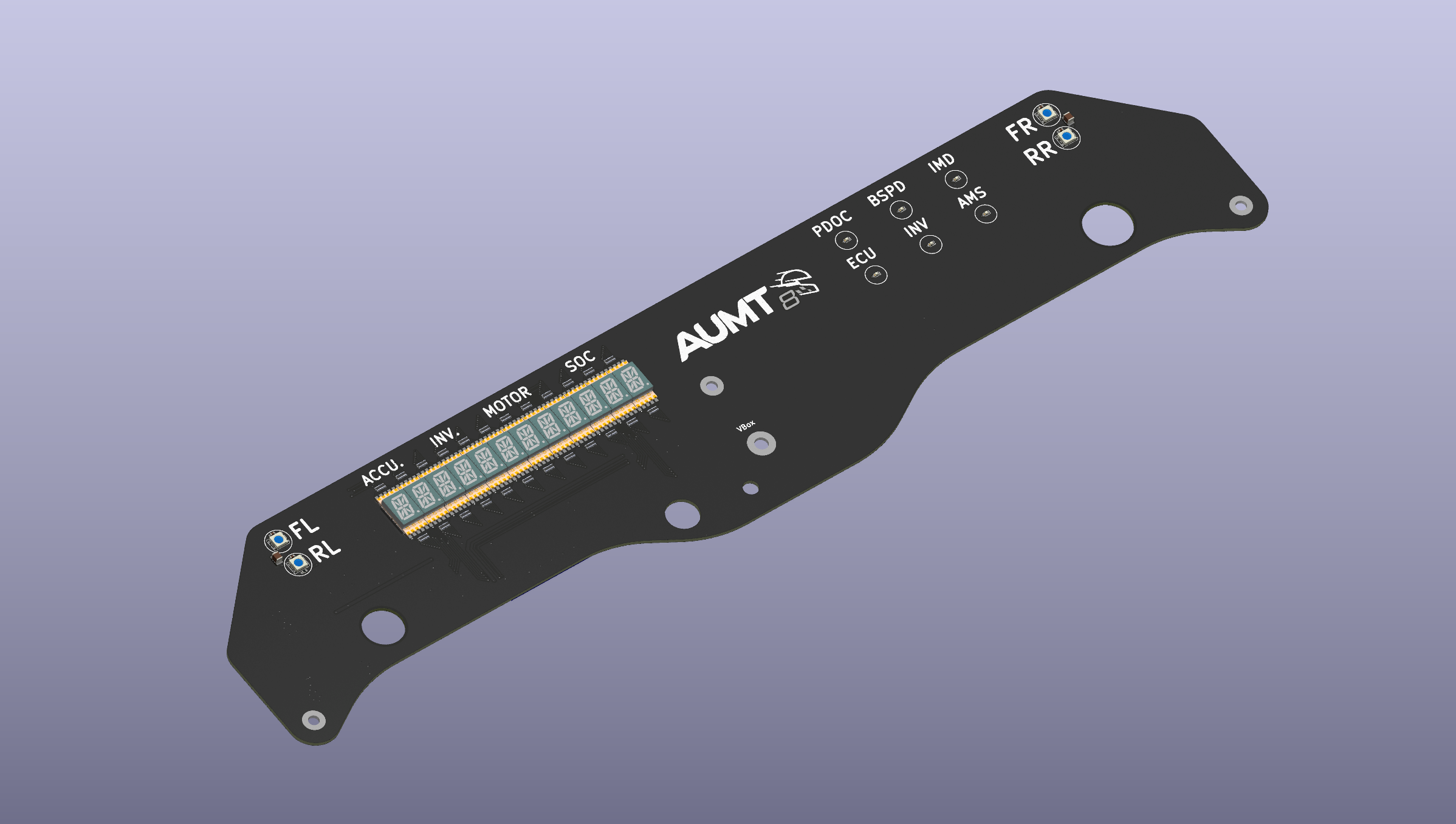

 Adelaide University Motorsport Team PCB dashboard 2024

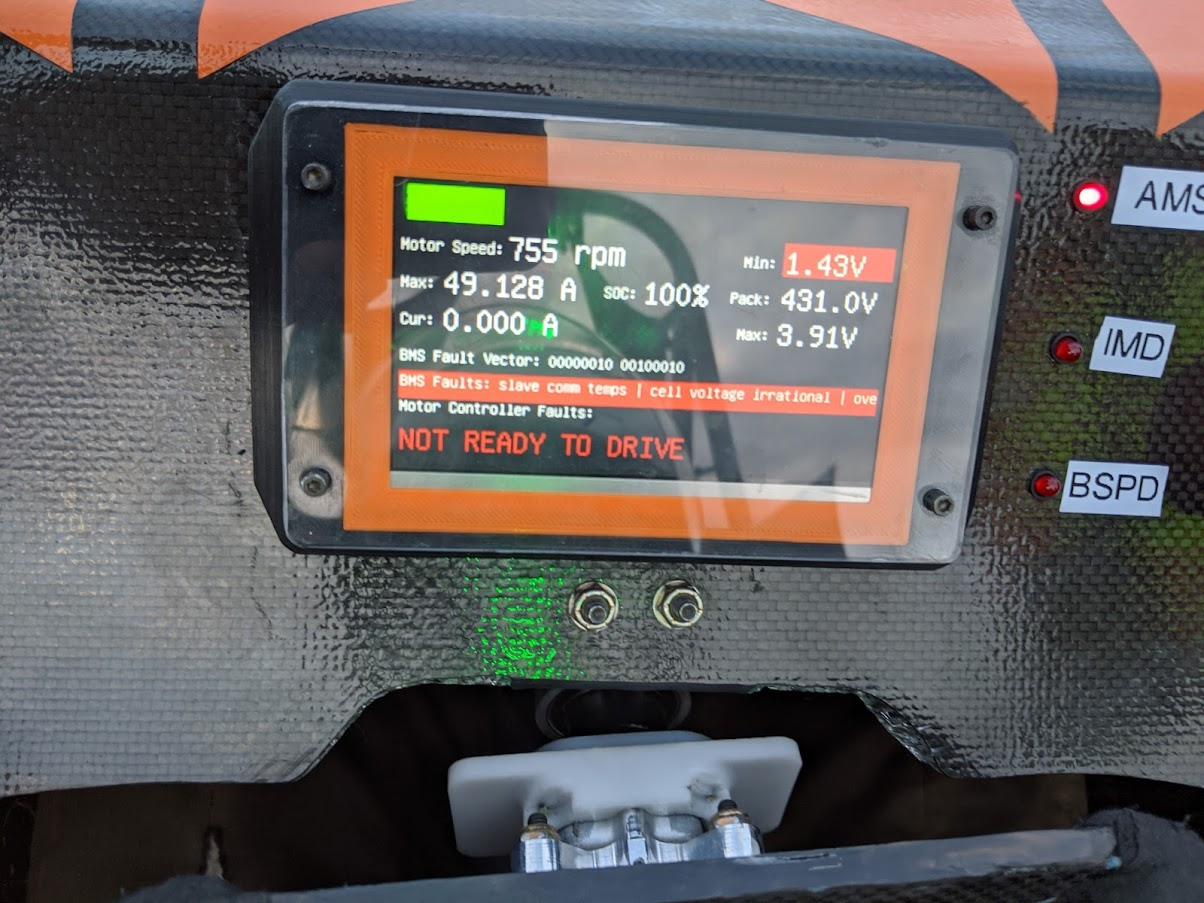

RIT 2019 Dashboard
